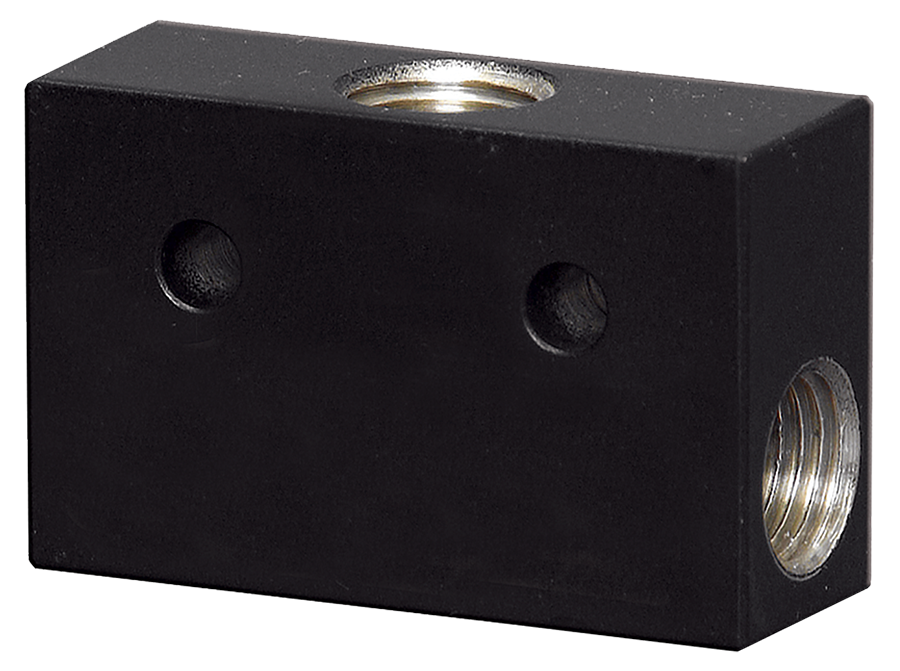

Shuttle Valves 1968E1006
- Two Inlets & One Outlet
- Poppet construction
- Low Maintenance
- Tolerant of Dirty Air
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Need Help? No Problem!
Customer Service
Technical Service
+1 (416) 251-7677
Product Information
| Valve Type | Shuttle Valve |
| Series | 19 |
| Application | General |
| Actuation | Pneumatic |
| Function | 2/2 |
| Thread Type | NPT |
| Inlet Pipe Size | 1/8" |
| Outlet Pipe Size | 1/8" |
| Construction | Poppet |
| Mounting | Inline |
| Avg Cv | 0.8 |
| Ambient Temperature | -40 to 175 F (-40 to 80 C) |
| Media Temperature | -40 to 175 F (-40 to 80 C) |
| Fluid Media | Filtered Air |
| Operating Pressure | 5 to 150 psig (0.3 to 10 bar) |
| Length | 1.98 in (50 mm) |
| Width | 0.75 in (19 mm) |
| Height | 1.25 in (32 mm) |
| Weight | 0.15 lb (0.07 kg) |
| Valve Body Material | Cast Aluminum |
+
